Our Products

Our range of products and services we offer, proves to be advantageous as Sectional Poles is unrivaled in the steel Mast and Tower industry.

Previous
Next

Lattice Towers (Tubular & Angular)

Self-supporting structures of up to 120m is our expertise. Our lattice structures are light-weight and effortlessly transportable.

The economical design applied allows our lattice structures to be competitively priced and are very popular since it accommodates various applications in the industries of telecommunication, lighting, security etc.

Also enquire about our guyed lattice structures, available up to 120m.

Specifications:

  • Three and four legged structures
  • Manufactured in circular hollow or angular sections.
  • Rooftop structures
  • Guyed Masts
  • Topographic design
  • Design loading according to client requirement
Previous
Next

Monopole Masts

Our portfolio includes an extensive range of monopole designs to cater to the environmental, esthetical and varying antenna and transmission requirements. Our design office is equipped to produce structures to comply with various design codes and our products are exported recurrently.

Specifications:

  • Monopoles are of continuous tapered design with the option to install antenna mounting poles,
    access doors and cable entry ports.
  • Generally, telecommunication masts are equipped with a landing (platform) and internal ladder.
  • Most designs are available in heights up to 65m, specially designed structures may reach higher.
Previous
Next

Mono-lattice Masts

This product represents our commitment to innovation and advancement in the manufacture of telecommunication support structures. We introduced this combination of a continuous tapered bottom section with lattice top to the South African market in 2008. The design allows easy installation of equipment and weighs less than conventional continuous tapered masts. We also utilize this product for the upgrade of existing masts.
Previous
Next

Tree Masts

A range of structures have been designed to camouflage telecommunication products in highly populated areas, typically where the Environmental Impact Assessment Regulation (EIA) rejects the conventional mast options. The Sectional Poles Camouflaged masts have become an ubiquitous addition to the telecommunication infrastructure and highly recommended for use in the metropolitan cities. When the need for these camouflaged structures became eminent in the late 1980’s, we were the first manufacturer to introduce the concept.
Previous
Next

Lampposts

In addition to signage structures and tree masts, Sectional Poles offers economical, transportable Lamppost-poles. Generally, these poles accommodate one or two operators inside the domed area, while supporting a light fixture.
Previous
Next

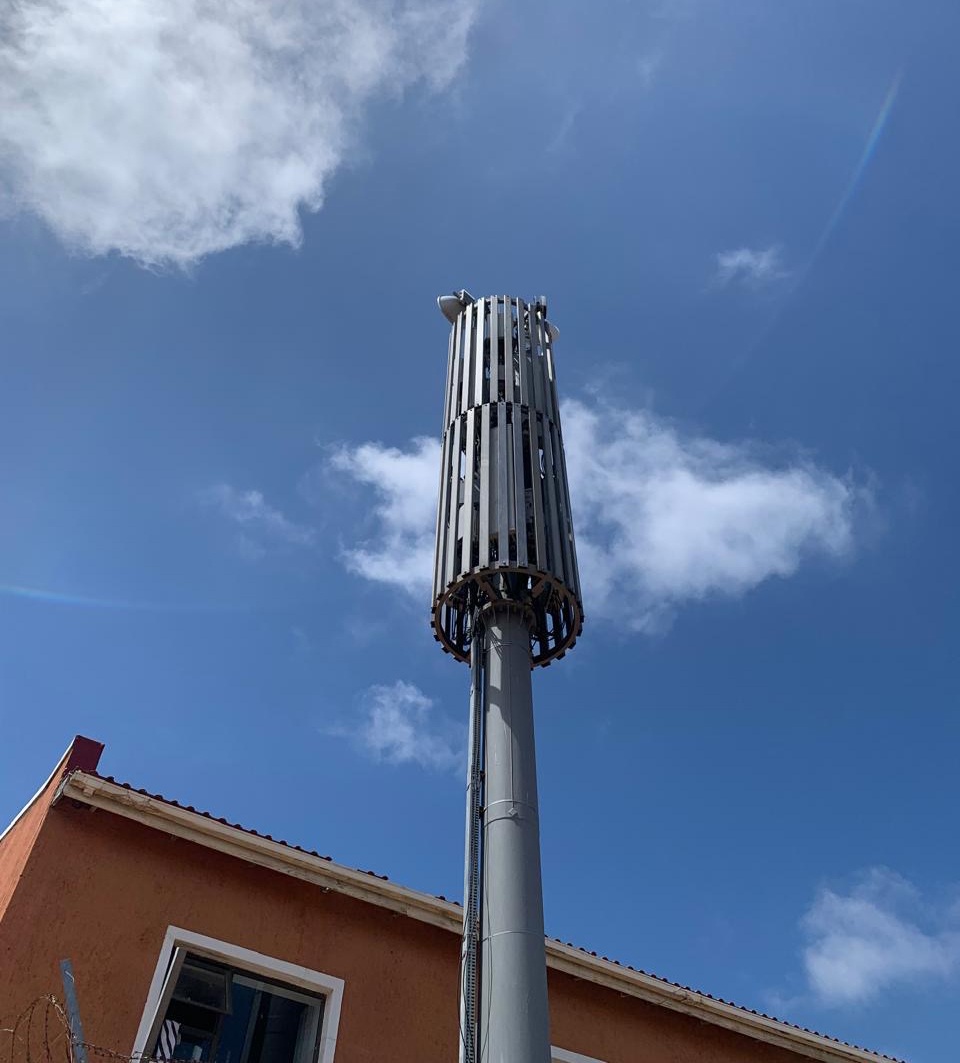

Dome Masts

An economical way to reduce wind load on structures, slim designs and larger tops available.

Previous
Next

Rapid-deployed Masts

These are typically towers of heights up to 36m, that accommodates one to three operators. Manufactured for the purpose to be removed and relocated after some time.

Previous
Next

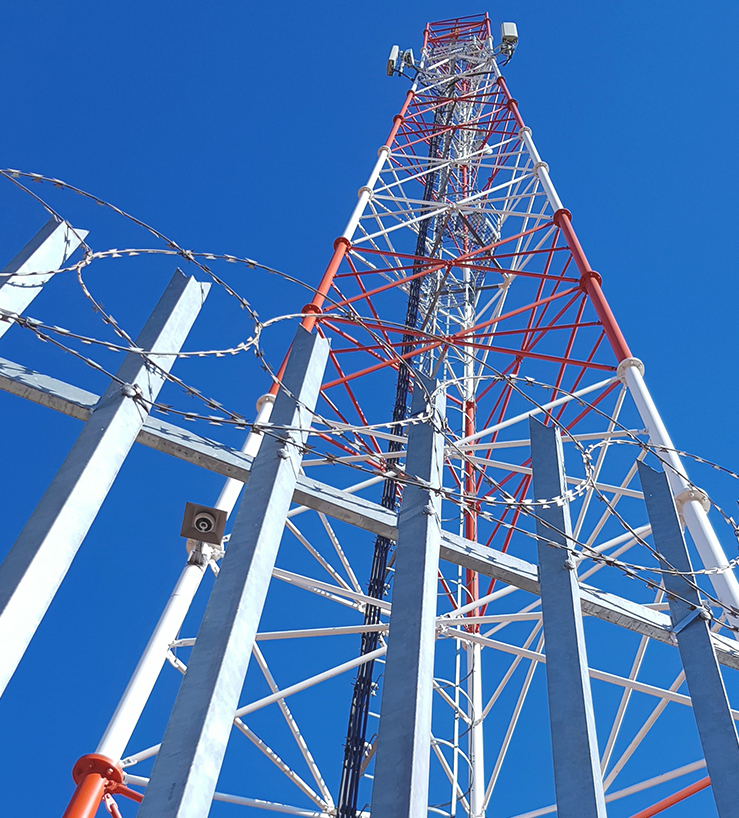

Fencing

When purchasing your telecommunication structure from Sectional Poles, it is convenient to add security fencing on one order.

Our easily transportable fencing products can be collected/delivered together with the hold down bolts of the structure, enabling site security very early on in the build!

Our high quality hot-dipped galvanized steel fencing is durable and weather resistant.

Previous
Next

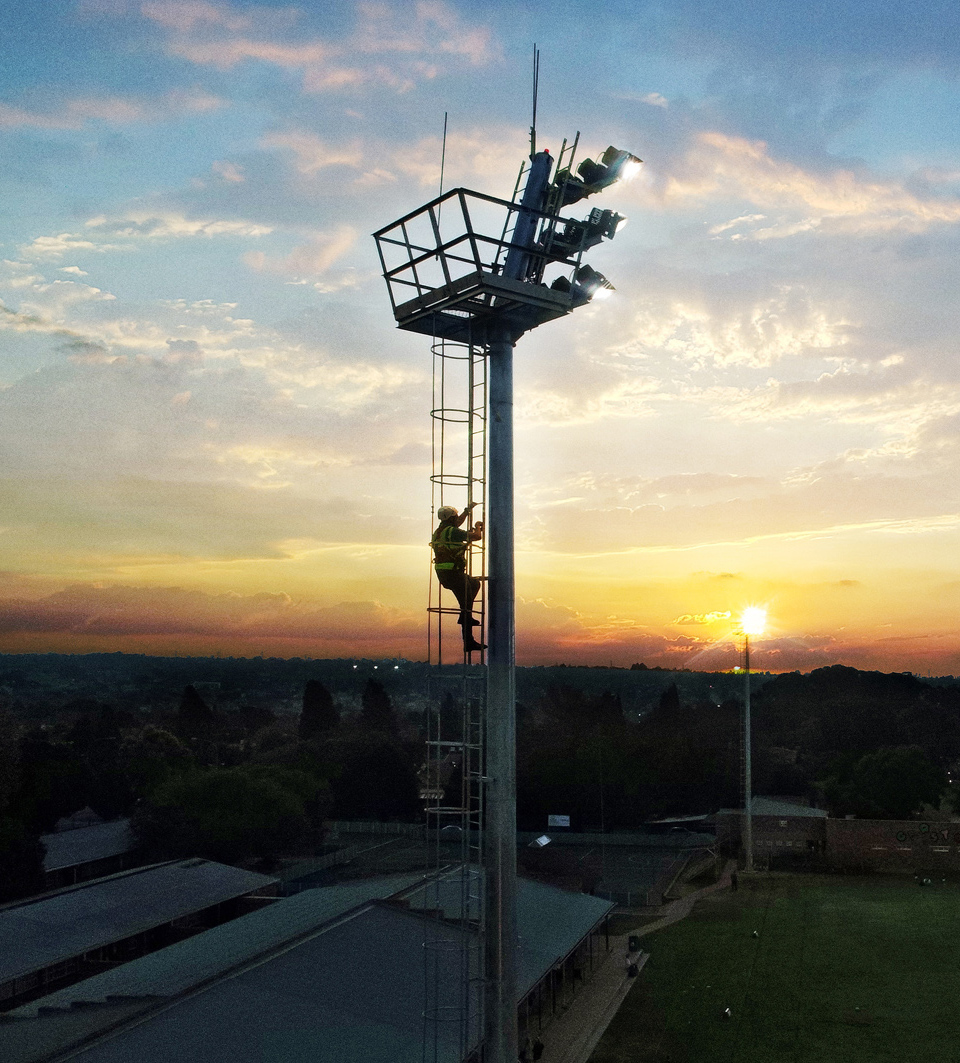

Floodlight Masts

Preferred product for stadium and field lighting.

Height range 6m to 65m.

Lights are installed on fixed mounting frames.

Specifications:

  • Round continuous tapered design.
  • Masts are fitted with access ladders.
  • The landings (platforms) of square or circular design, are fitted with a trapdoor to provide safe access from the ladder.
Previous
Next

Highlight Masts

Preferred product for large area lighting such as suburban, township lighting and harbour lighting.

Height range 15m to 40m.

Lights are installed on a circular ring that is mechanically hoisted up the mast for easy maintenance access.

Specifications:

  • Round continuous tapered design.
  • Specially designed mounting rings are supplied to support equipment.
  • The mounting rings are suspended by stainless steel wire ropes.
  • Raising/lowering gear is accessible through a high security door.
  • Lowering operation is performed by attaching a winch and power tool.
Previous
Next

Scissor Masts

Preferred product for Road and Highway lighting

Height range 10m to 25m.

Various mounting possibilities for lights.

Specifications:

  • Octagonal continuous tapered design.
  • The mast consists of two enclosed bottom components and a single top section.
  • One bottom unit is fixed, while the other will pivot to lower the top mounted equipment.
  • Internal counter-weights are fitted to enable gradual descent.
  • This operating system facilitates effortless manned operation.

Transmission Line structures

We manufacture lattice & monopole structures for the transmission industry.

Previous
Next

Street Lighting & Camera Poles

Preferred product for suburban road lighting and parking areas.

Height range 2m to 15m.

This light-weight product is designed to accommodate a multitude of lights and fittings.

We supply all mounting accessories which includes: Luminaires, outreach arms, spigots and electrical equipment.

These poles can be directly inserted into the ground, flange bolted onto stub sections or concrete foundations.

Our range furthermore includes poles with hinges at their bases.

The factory is equipped with specifically designed 4-stage swage machines that enables precision swaging.

Alternatively, we also manufacture weld-in tapered poles.

Previous
Next

Mid-hinged Econo-Poles

Height range 6m to 12m / 2m to 35m

We introduced this intermediate mast type to the transitional lighting market that has higher load requirements than what a streetlight pole can accommodate, yet less expensive than the products available for large area lighting.

This versatile product has various mounting possibilities, provides safe, convenient access for maintenance thereof and are available at a very competitive rate.

Specifications:

  • These poles have hollow circular top units, with connecting hinges and square hollow bottom sections.
  • Internal counter-weights are fitted to enable gradual descent.
  • This operating system facilitates effortless manned operation.
Previous
Next

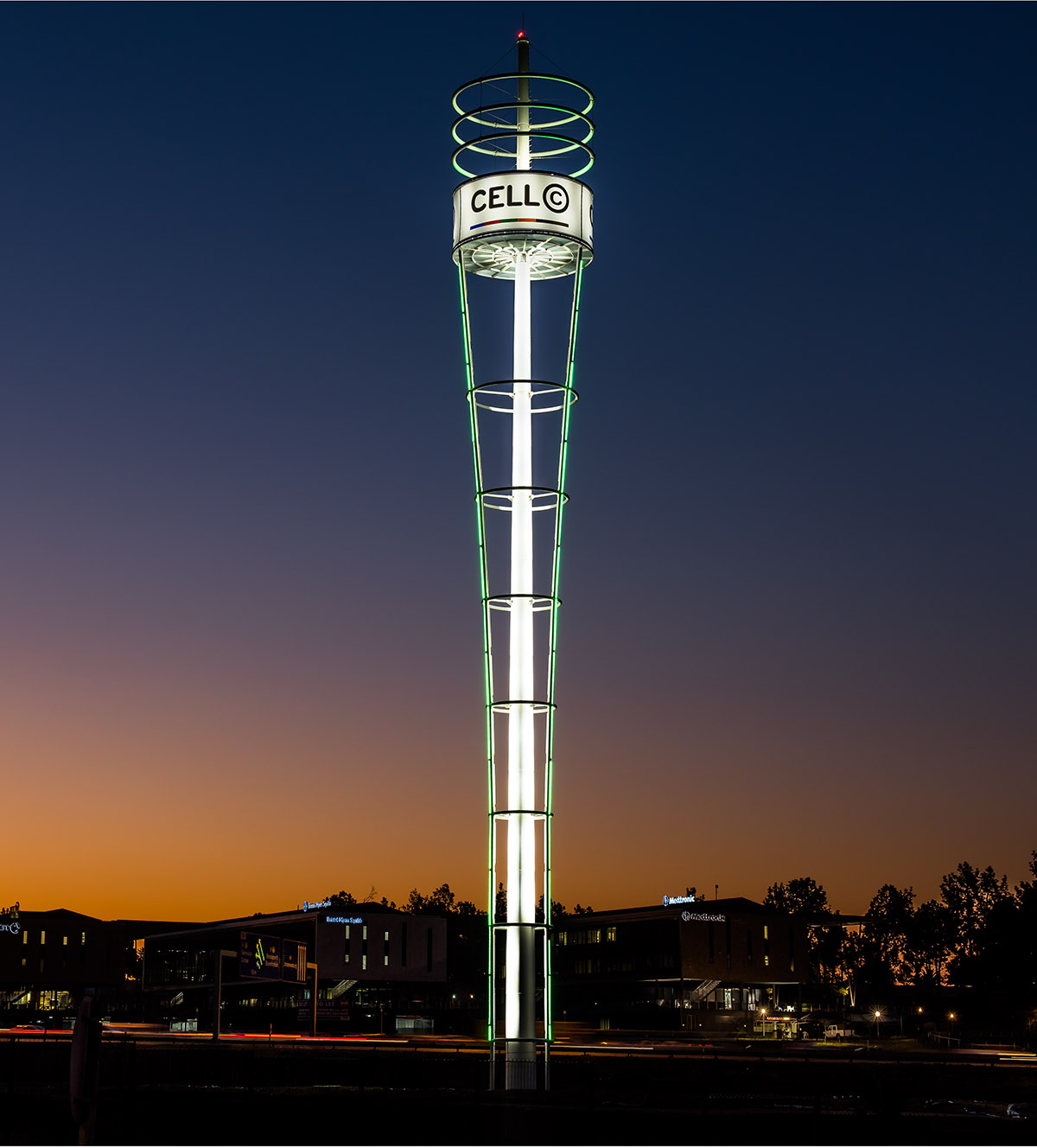

Signage Structures

Our engineers have created some phenomenal structures in the past and continue to amaze the public with their innovative designs.

Lightning Arresters

We manufacture lighting arresters, typically between 10m to 50m high.

These poles may be planted or bolted onto a foundation structure.
